VIR Powerful Magnetic Separator Iron Remover

Short Description:

Magnetic Separator effectively removes rust, iron filings, and other ferrous impurities to improve product purity and protect equipment from damage. It uses advanced technology and materials, including a super-strong NdFeB magnetic rod with a surface magnetic field strength exceeding 12,000 Gauss. The product has obtained 2 patents for its ability to comprehensively removes pipeline ferrous contaminants and quickly removes impurities. Design standard: ASME/ANSI/EN1092-1/DIN/JIS. Other standards possible upon request.

Magnetic field strength peak: 12,000 Gauss. Applies to: Liquids containing trace amounts of iron particles.


Download

Product Detail

Introduction

VITHY® VIR Powerful Magnetic Separator adopts the three-dimensional finite element analysis method to optimize the design of magnetic rods, magnetic circuits, and their distribution. The core magnetic rod of the machine is a NdFeB super strong permanent magnet material produced by the latest technology, which is the world's highest-grade material, with its surface magnetic field strength peak greater than 12,000 Gauss.

Made of stainless steel, the machine ensures durability. It is widely used in various industries such as food, metal processing, pharmaceuticals, and mining. With its exceptional performance and long lifespan, it is highly recommended for companies seeking quality and performance.

Number

Features

● The pulp moves around the strong magnetic field created by the machine, allowing for improved iron removal through full contact and multiple captures.

● The machine has a long service life with very low magnetic attenuation, only experiencing a 1% decrease after 10 years.

● It operates without using energy and has no moving parts, resulting in low operating costs.

● The special top cover can be quickly opened for easy operation and maintenance.

● It is made of high-quality SS304/SS316L stainless steel, providing excellent resistance to corrosion.

Specifications

Size

DN25-DN600

Magnetic Field Strength Peak

12,000 Gauss

Applicable Temperature

<60 ℃, high temperature type customizable

Housing Material

SS304/SS304L, SS316L, carbon steel, dual-phase steel 2205/2207, SS904, titanium material

Design Pressure

0.6, 1.0 MPa

Applications

● Industry: Food & beverage, metal processing, pharmaceutical, chemical, ceramics, paper, etc.

● Fluid: Liquids containing trace amounts of iron particles.

● Main separation effect: Capture iron particles.

● Separation type: Magnetic capture.

Patents

● Patent 1

Number: ZL 2019 2 1908400.7

Granted: 2019

Utility model patent name: A Magnetic Separator that Quickly Removes Impurities

VITHY 2019 Patent 【Magnetic Separator】-A Magnetic Separator that Quickly Removes Impurities

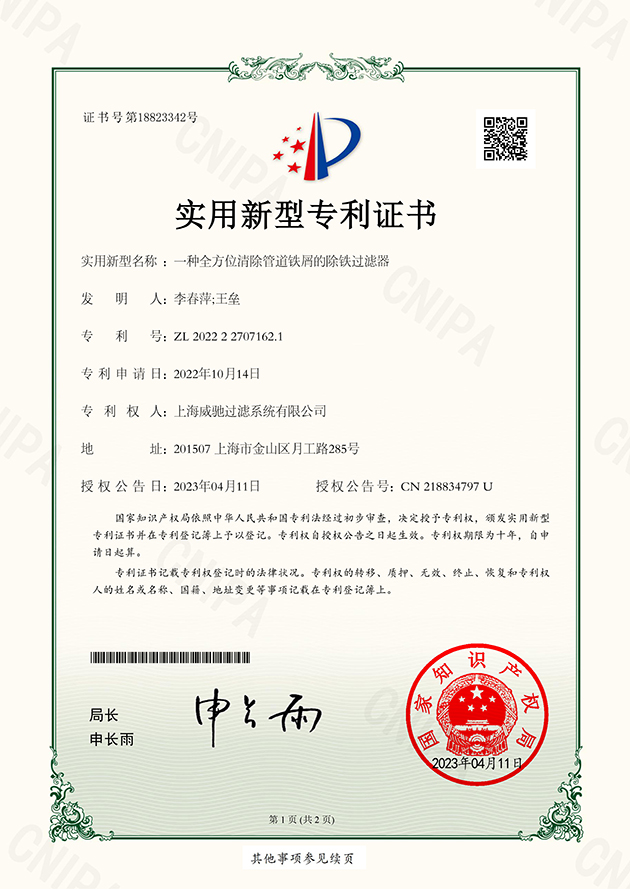

● Patent 2

Number: ZL 2022 2 2707162.1

Granted: 2023

Utility model patent name: A Magnetic Separator that Comprehensively Removes Pipeline Ferrous Contaminants

VITHY 2023 Patent 【Magnetic Separator】-A Magnetic Separator that Comprehensively Removes Pipeline Ferrous Contaminants
