The Polypropylene material forms a three-dimensional, highly porous, and intricately folded filtering layer. It has a loose fiber structure, which increases the capacity to hold impurities.
This fiber material effectively removes solid and soft particles. Larger particle impurities are trapped on the surface of the fibers, while finer particles are captured in the deep layers of the fiber material, ensuring that it will not be damaged due to increased pressure during use, thus providing high filtration efficiency.
Additionally, the application of high-temperature surface heat treatment (instant sintering technology/rolling treatment), effectively prevents the fibers from being dispersed by the high-speed impact of the liquid during filtration. This ensures that there is no fiber detachment causing contamination of the filtrate, and also avoids the traditional roller compression treatment causing excessive clogging of the filter pores and shortening the filter bag's lifespan, while maintaining low pressure difference without affecting flow rate.
● Broad chemical compatibility
● High dirt holding capacity
● Low cost
● Smoothing surface treatment to prevent fiber and leachable release
● Polypropylene material meets FDA regulations for food contact
● No silicones or other contaminants
● Easy installation

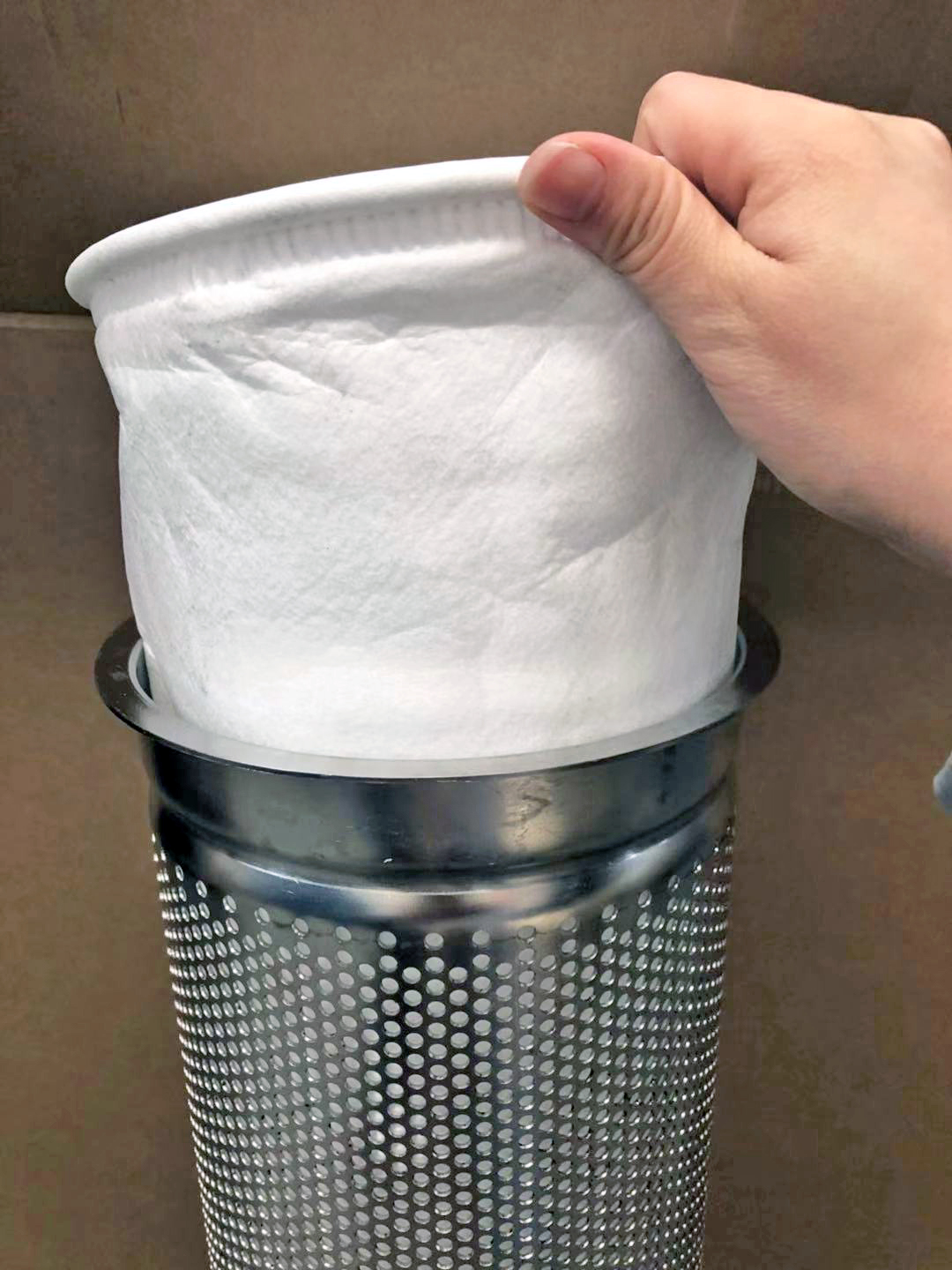

● Tight sealing with the support basket
|
Model |
Bag Size (D*L, mm) |
Reference Flow Rate (m3/h) |
Filtration Area (m2) |
|
#4 |
105*330 |
2-5 |
0.1 |
|
#1 |
180*430 |
10-15 |
0.25 |
|
#2 |
180*810 |
15-30 |
0.5 |
| Micron Rating | 0.5135
10 25 50 75 100 150 200 |
| Max Operating Temperature | 90 ℃ |

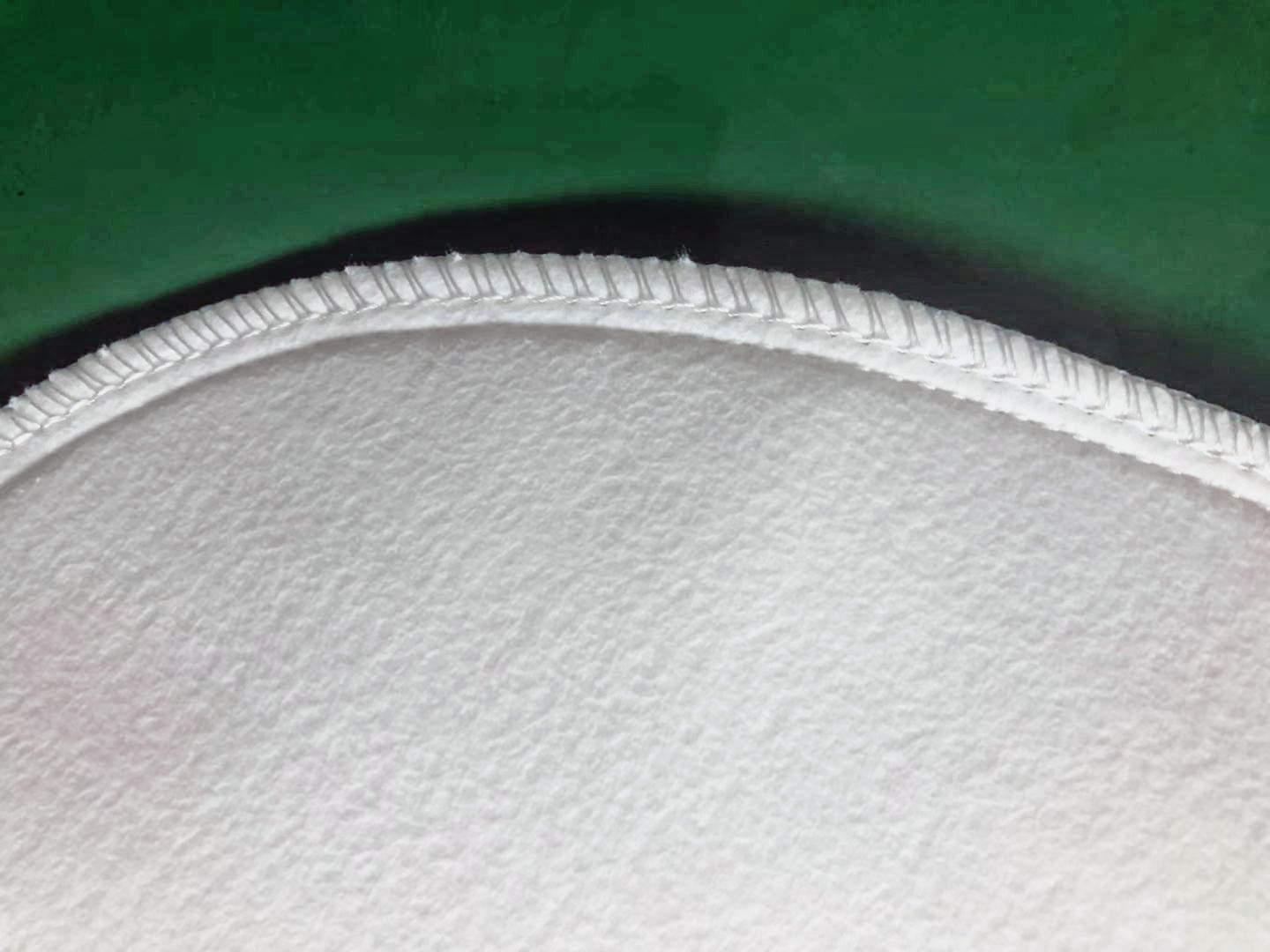

| Stitching Method | Ultrasonic welded /seam stitched |

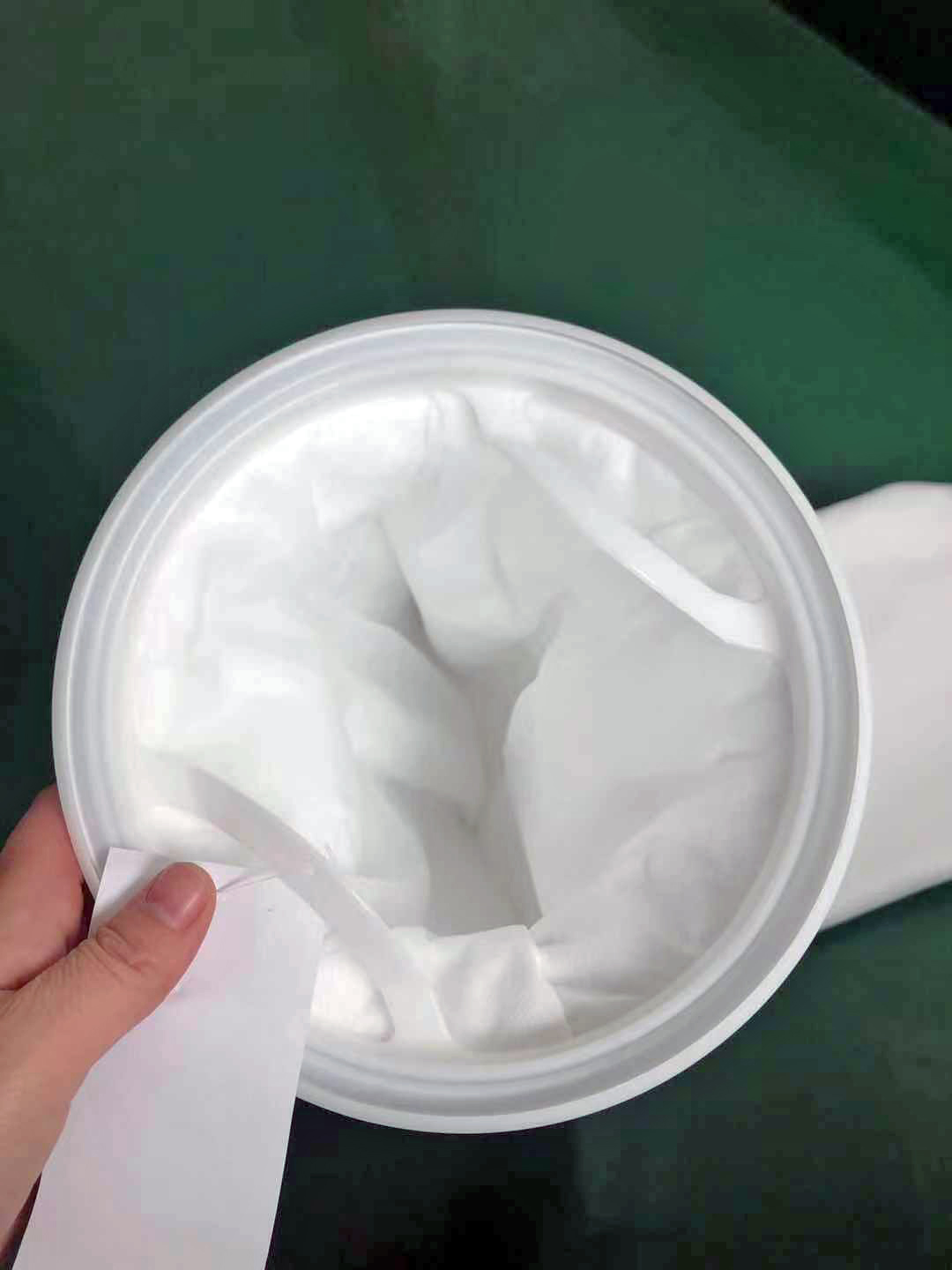

| Sealing Ring | Polypropylene and polyester SDS/STS/galvanized steel ring/stainless steel ring |
| Sealing Ring Connection | Ultrasonic welded /seam stitched |
| Filtration Efficiency | Relative accuracy: single filtration efficiency 85% |
| Differential Pressure for Replacing | 0.1 MPa, must not exceed 0.18 MPa |
| Filtration Type | Depth filtration |
|
Mesh Size, Micron Rating & Inch Comparison Table |
||
|
Mesh |
Micron |
Inch |
|
12500 |
1 |
0.00004 |
|
6250 |
2 |
0.00008 |
|
2500 |
5 |
0.00002 |
|
1250 |
10 |
0.0004 |
|
800 |
15 |
0.0006 |
|
625 |
20 |
0.0008 |
|
500 |
25 |
0.001 |
|
425 |
33 |
0.0013 |
|
400 |
37 |
0.0015 |
|
325 |
44 |
0.0017 |
|
270 |
53 |
0.0021 |
|
230 |
63 |
0.0024 |
|
200 |
74 |
0.0029 |
|
170 |
88 |
0.0035 |
|
140 |
105 |
0.0041 |
|
120 |
125 |
0.0049 |
|
100 |
149 |
0.0059 |
|
80 |
177 |
0.007 |
● Coatings & Paints
● Electronics
● Water Purification & Water Treatment
● Petrochemical
● Pharmaceuticals
● Fine Chemicals (e.g. organic solvents, alkalis, oxidizing agents, organic acids, mineral acids, micro-organisms)
● Automobile manufacturing
● Food (e.g. animal or vegetable oils) & Beverage (e.g. beer, wine, spirits)
● Fine particle removal in parts cleaning
● Activated carbon removal in process systems
● Final filtration of vinegar, varnishes
● Final filtration of hydraulic oils and lubricants
